PGD FRAG tactical bulletproof vest

From: 800

PGD FRAG is designed to offer maximum fragmentation protection according to STANAG2920 as well as ballistic protection against handguns up to a .44 magnum according to NIJ 0101.04 IIIA, which gives you a full 360° ballistic/fragmentation protection. With a flexible ballistic soft armor, you will have very high comfort and the vest will adapt to your body through every movement.

PGD FRAG tactical bulletproof vest

The PGD FRAG is our heavy duty tactical vest and it comes with our PGD DELTA soft armor. The PGD FRAG is designed in Denmark through a cooperation with Orion Defence with focus on maximum ballistic coverage, with an agile design and cut for a high mobility.

Product features

Excellent ballistic features

The PGD FRAG is designed to offer a full 360° ballistic and maximum fragmentation protection:

  • Stops 44 magnum and 9 mm FMJ at 450 m/s according to NIJ 0101.04 IIIA
  • STANAG 2920 V50 at 606 m/s
  • NIJ 0115.00 S1 55 joules

With a flexible ballistic soft armor, you will have very high comfort and the vest will adapt to your body through every movement. The soft armor cut is designed to contour to the body without feeling bulky. The agility and maintaining protection of the most vital areas on your body have been some of our top priorities.

Standard (ballistic)

Projectile

Velocity

NIJ 0101.04

.44 magnum SJHP

436 m/s +-9

NIJ 0101.04

9 mm FMJ

439 m/s +-9

Standard (stab)

Blade type

Joules

NIJ 0115.00

SG1 blade

55 joules E2

Standard (ballistic)

Projectile

Velocity

STANAG2920

Fragment 17 gr

606 m/s +-9

Important features of the PGD FRAG tactical vest:

  • Webbing at shoulder straps have a breaking strength of 1472 kg, furthermore the Metal slide is made with 2 inch metal according to MIL-L-3851 for extreme durability that never will fail.
  • Laminate fabric is PU coated, DWR, IRR and water resistant – made in Europe (Foxa Oy Finland) and (Brookwoods Companies, INC. USA).
  • Made in full 500 denier Cordura laminate, which is 35-40 % lighter than traditional MOLLE. This offers the best possible mobility to wear over a long period of time.

Read our size guide for tactical bulletproof and stabproof vests if you are having trouble decided your size. When you measure yourself, it is important that you wear layers of clothes to get the correct sizing with your finished setup. The size is designed to follow your width, so if you measure 85 cm, we suggest you take a medium that covers 90 cm for full 360° protection.

Outlast® PCM technology

Our PGD FRAG is lined with Outlast® PCM (Phase Change Material) technology, which means the material actively manages and regulates temperature for maximum comfort. Outlast® PCM absorbs, stores, and releases heat as needed, keeping the wearer cool when it’s warm and warm when it’s cool. This dynamic temperature regulation prevents overheating or chilling, ensuring consistent comfort in varying conditions.

Add ESAPI plates

Our PGD FRAG tactical bulletproof vest features built in front and back pockets for carrying  ESAPI hard armor. For side armor protection you need to upgrade with a plate pocket, which does not come with the FRAG system per default.

Following hard armor plates are compatible:

  • Size small is compatible with size S ESAPI & 30×25 cm plates
  • Sizes medium-XL are compatible up to size M ESAPI & 30×25 cm plates
  • Size XXL is compatible up to size L ESAPI & 30×25 cm plates
  • Size XXXL is compatible up to size XL ESAPI & 30×25 cm plates

The hard armor plates are being inserted through the velcro opening on the inside of the vest, and you can adjust them to sit low or high with the adjustable cordura straps on the inside.

The Placard is attached with velcro, and can be replaced and attached through G hook or similar webbing mounted system through the molle webbing, that is “hidden” behind the laser-cut webbing on the front.

Quick release buckles from italian 2M™

The 2M Quick-Release Buckle is a cutting-edge fastening mechanism known for its strength, ease of use, and reliability in critical applications. Designed by the Italian company 2M, the buckle is primarily used in tactical and military gear, including body armor, plate carriers, and load-bearing equipment. Its innovative design allows for quick donning and doffing of gear, making it invaluable in high-stress situations where time is of the essence.

We have chosen this buckle system for our PGD FRAG because of its simplicity in operation. The buckle is engineered with a single-handed release mechanism, allowing the user to quickly disengage the buckle with one swift motion. This feature is especially useful for military personnel and law enforcement who may need to remove or adjust their gear under pressure. The buckle’s design ensures that while it can be released quickly, it remains securely fastened under normal conditions, preventing accidental release during movement or combat.

Its quick-release functionality allows soldiers and law enforcement officers to shed their gear rapidly in emergencies, such as when injured or trapped, facilitating faster medical attention or easier escape. In high-risk situations, being able to quickly remove protective gear can make a life-or-death difference.

Part descriptions

Available add-ons
  • PGD FRAG BICEP ADD-ON
    The biceps add-on provides enhanced protection by covering both shoulders, extending the defensive capabilities. This add-on shields the vulnerable upper arm and shoulder areas, ensuring comprehensive coverage during high-impact combat, while maintaining flexibility and comfort for the wearer.
  • PGD FRAG GROIN ADD-ON
    The groin add-on offers essential protection for the lower abdomen and pelvic area, shielding sensitive regions from impact or injury in high-risk situations. It enhances safety without compromising mobility, providing peace of mind during combat.
  • PGD FRAG COLLAR ADD-ON
    The collar add-on enhances protection for the neck and upper spine, safeguarding vital areas from impact or injury. It provides additional defense without restricting mobility, making it ideal for situations where neck protection is critical.
  • PGD FRAG THROAT ADD-ON
    The throat add-on provides critical protection for the neck and throat area, guarding against potential injury in high-risk environments. This add-on shields vital areas without restricting movement, ensuring enhanced safety during combat or law enforcement operations.

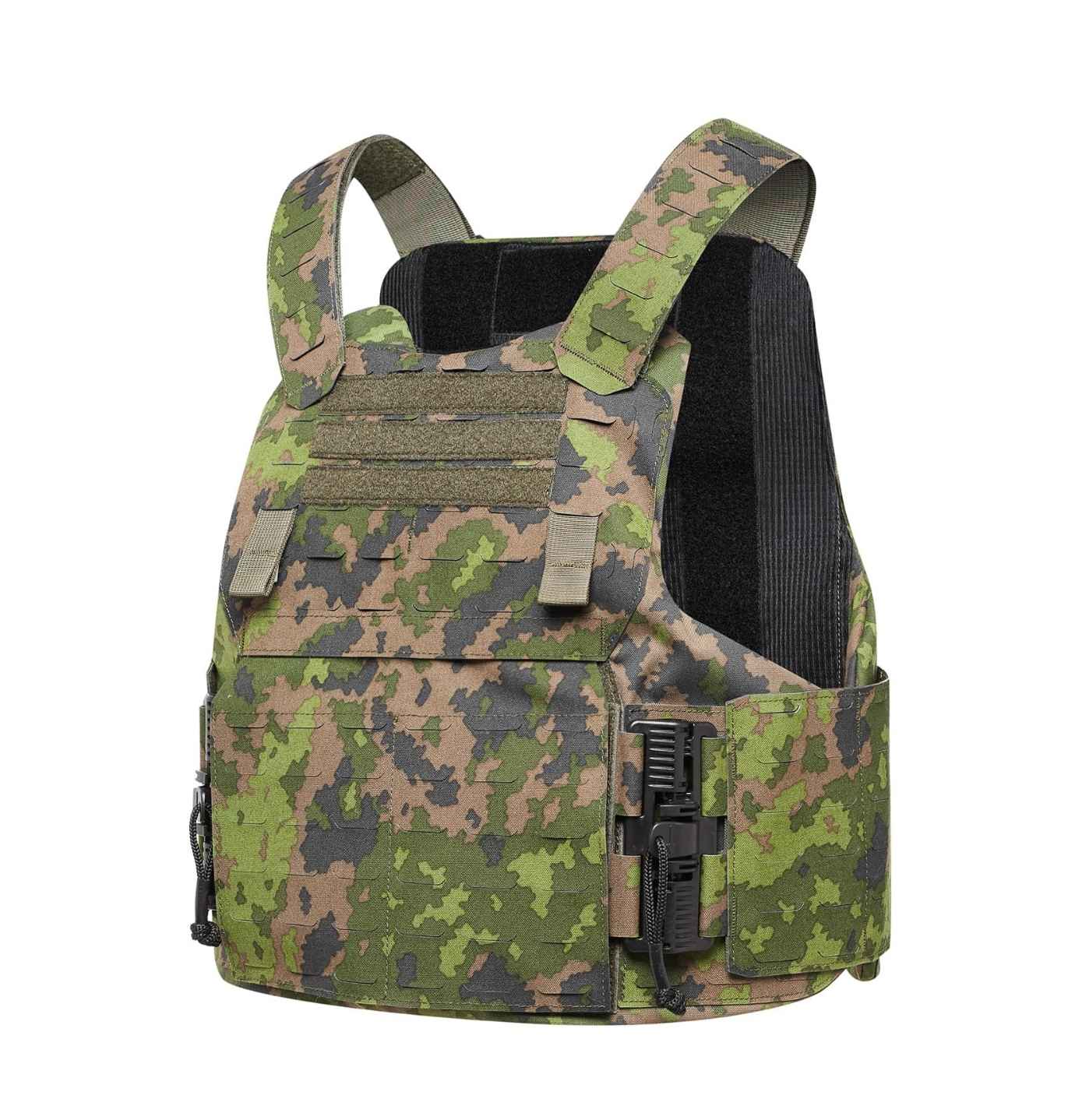

  • PGD FRAG BASE VEST
    The base listing price includes the vest with none of the addons, as shown here.
  • PGD FRAG FULL TACTICAL
    Fully upgraded ultra durable tactical vest with all available add-ons included.
Premium product
  • Materials from Honeywell
    PGD is ISO9001:2015-certified and uses only quality materials from well-known manufacturers. PGD FRAG is manufactured with materials from Honeywell.
  • Manufactured in Denmark by PGD
    At PGD, we manufacture all of our soft armor in-house in Denmark. This guarantees top quality through complete production control. Additionally, by handling every step ourselves, we’re able to offer premium products at a much more competitive price!
What's included

NIJ IIIA soft armor panels & PGD FRAG textile carrier.

Gallery

Description



Ballistics – NIJ 0101.04 IIIA: .44 magnum and 9 mm
– NIJ 0115.00 S1: 55 joules E2
– V50 STANAG 2920: 606 m/s
Ballistic material – High quality materials from Honeywell and weigh 5.3 kg/m2
– Thickness: 4.9 mm
– 10/10 flexibility
Unisex Yes (can be used by both male and female body shapes)
Features – 100% water/sweat resistant ultrasonic sealed TPU cover

– Built-in pockets front and back for carrying ESAPI hard armor plates

– Outlast® PCM technology

– Quick release buckles from italian 2M™

Warranty – 7-year ballistic warranty

– 2-year warranty on the textile carrier

Available accessories – Groin add-on

– Collar add-on

– Throat add-on

– Biceps add-on

Weight – S Size 2.20 kg

– M Size 2.40 kg

– L Size 2.60 kg

– XL Size 2.85 kg

– 2XL Size 3.10 kg

– 3 XL Size 3.30 kg

Size S Size – 27.56 – 31.50″ (70-80 cm)
M Size – 31.50 – 35.43″ (80-90 cm)
– L Size – 35.43 – 39.37″ (90-100 cm)
– XL Size – 39.37 – 43.31″ (100-110 cm)
– 2 XL Size – 43.31 – 47.24″ (110-120 cm)
– 3 XL Size – 47.24 – 51.18” (120-130 cm)
Colors Black, coyote brown, ranger green & multicam
