PGD U-line ESAPI plate NIJ level 4 (IV)

393 559

When the going gets tough, you want to be absolutely sure that you have the best protection and top performance.

Here, our PGD U-line ESAPI plate NIJ IV is the ultimate plate to achieve it.

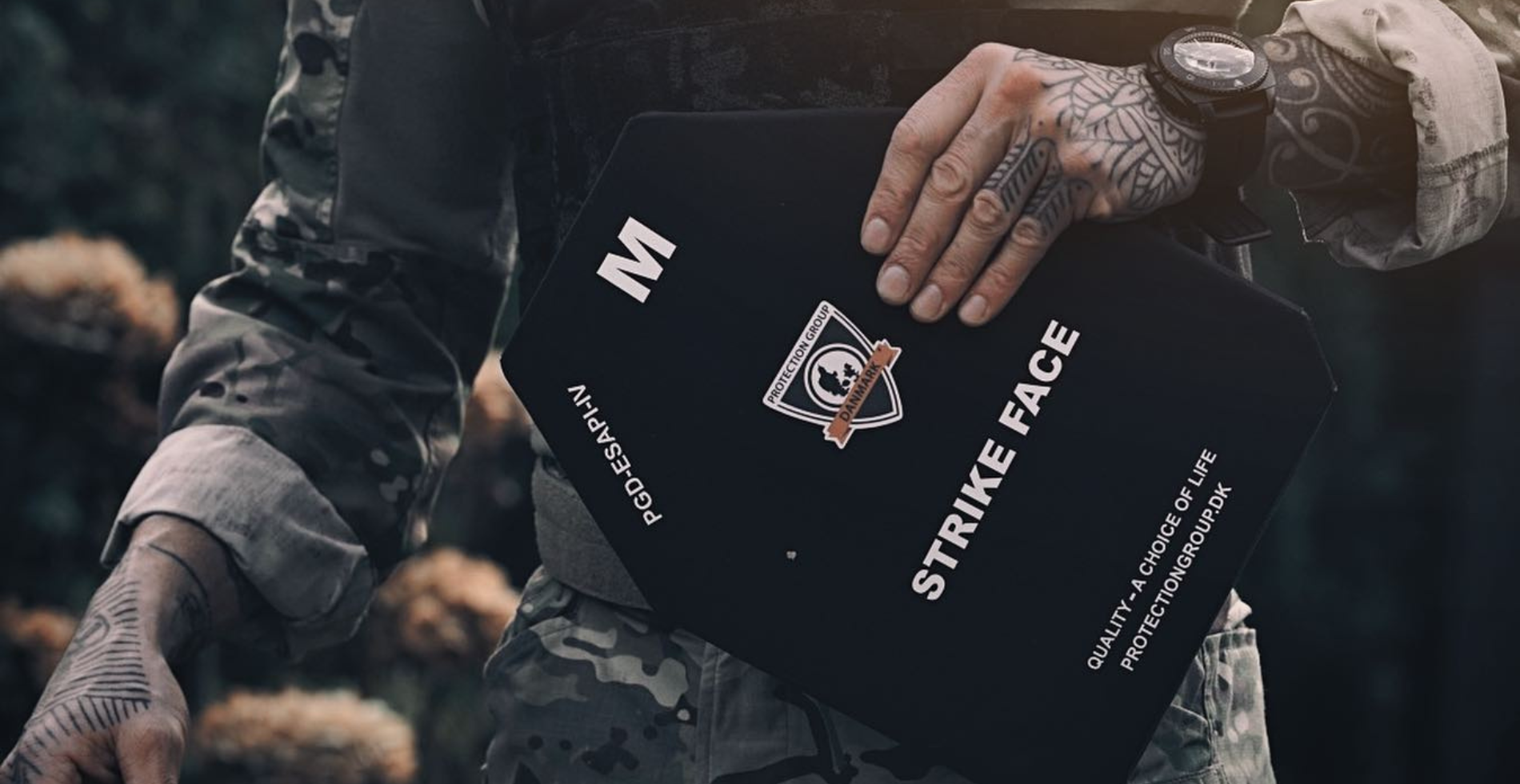

PGD U-line ESAPI plate NIJ IV

Our PGD U-line are premium standalone plates and are available as a multicurved front/back plate aswell as two sizes of single-curved side plates.

Product features

Excellent ballistic features

The PGD U-line ESAPI plate, certified to NIJ level IV standards, offers exceptional ballistic protection, making it an ideal choice for military and law enforcement personnel facing high-caliber threats. This plate is engineered to stop a variety of powerful rounds, ensuring the wearer is protected in the most dangerous combat scenarios.

Its advanced construction allows it to neutralize high-velocity rounds, including the 30 Cal. 166 gr. APM2 with a single shot, as well as the 7.62x54R 150 gr. B32 and 7.62×51 NATO M80. In addition, it effectively defends against common threats like the 7.62×39 MSC from AK-47 rifles and the 5.56×45 NATO SS109/M855/M855A1 rounds. This plate is engineered for maximum defense, ensuring superior protection against a wide range of ballistic threats.

Standard

Projectile

Velocity

NIJ 0101.06

.30 Cal. (.30-06) 166 gr. (10.8g) AP (U.S Military M2AP)

878 m/s +- 9,1

Special threat

7.62x54R, 150 gr. API B32

854 m/s +- 9,1

Special threat

5.56x45mm, 62 gr. FMJ (SS109)

950 m/s +- 9,1

Special threat

7.62mm NATO, 147 gr. (9.6g) FMJ (U.S. Military M80)

847 m/s +- 9,1

Special threat

Russian 7.62x39mm 123 gr. MSC (M43)

725 m/s +- 9,1

This broad range of ballistic defense makes the PGD U-line ESAPI plate an exceptional choice for individuals who need maximum protection in high-risk environments, offering peace of mind and life-saving performance under fire.

An ESAPI plate provide ultra protection

The PGD-Uline can be used as a stand-alone, so you do not need soft armor. It is designed in a multi curve that makes the plate sit nicely to the body because it is shaped for the chest and abdomen. The plate is made of one large piece of Monolithic SIC ceramic. It gives you the lightest and at the same time the strongest ceramics we have available for NIJ level 4.

Our PGD U-line ESAPI plate is protected by a thin layer of foam all the way around the plate against impact and hard use. The advantage of a ceramic plate is that SS109 / M855 / m193 and Armour-piercing impacts are stopped where they will penetrate steel. At the back of the plate, we have built our Anti Back Face Signature line. It provides extra protection against the impact of the bullet, so you do not die from the impact.

In short, a PGD U-line plate is your extra body mate that covers you when you need it most.



  • PGD active ceramic area
    The use of Monolithic SIC ceramics also provides the opportunity to make an edge-to-edge ceramics, so that the ceramics cover the entire front of the plate.

    If your plate is not protected from edge to edge, the plate will protect a smaller area of ​​your body than it appears. It is much cheaper to produce without edge-to-edge ceramic, but it would also protect about ⅓ less of your body.
  • Designed for extreme environments
    Our PGD U-line ESAPI plate is designed so that you can perform well in extreme environments where it is either hot or very cold. This makes the plate very popular among soldiers operating in the Middle East, for example.

    Although water and oil on the plate are not fatal to your body, a PGD U-line plate is sealed with a water-repellent Cordura cover. This means that your ESAPI plate can and does help to extend its shelf life.
Available sizes

This ESAPI plate, which stands for Enhanced Small Arms Protective Inserts, is NIJ level 4, stand alone and available in 5 different sizes:

  • Small: 227 x 303 mm / 8.75″ x 11.75″ – (2.70 kg/5.95 lbs)
  • Medium: 246 x 323 mm / 9.5″ x 12.5″ – (3.20 kg/7.05 lbs)
  • Large: 265 x 342 mm / 10.25″ x 13.5″ – (3.50 kg/7.71 lbs)
  • X-large: 285 x 361 mm / 11″ x 14″ – (4.0 kg/8.81 lbs)
  • Standard: 250 x 300 mm / 10″ x 12″ (2.95 kg/6.5 lbs)

Side panels (optional) come in the following sizes:

  • 150×150 mm / 6”x 6” (1 kg/2,2lbs)
  • 200×150 mm / 6”x 8” (1,2 kg/2,4 lbs)

Compare all PGD hard armor plates.

What's included

These hard armor plates are sold as single pieces – not pairs.

Gallery

Description



Ballistics Tested for NIJ level IV
Threats The ESAPI plates stop the following threats:
– NIJ 0101.06 IV: 30 cal. 166 gr. APM2, 1 shot
– Special threat: 7.62x54R 150 gr. B32, 1 shot
– Special threat: 7.62×51 NATO M80
– Special threat: 7.62×39 MSC AK47
– Special threat: 5.56×45 NATO SS109/M855
Type ESAPI cut | Standalone | Requires no soft armor
Ergonomic fit Multicurved / 3D curved
Material Monolithic Silicon Ceramic from Saint Gobain and aramid backing
Waterproof cover Cordura cover
Warranty 7-year ballistic warranty
Thickness 26 mm
Sizes – ESAPI 10″x12″ (30 x 25 cm) 2.9 kg

– ESAPI Small 2.7 kg

– ESAPI Medium 3.2 kg

– ESAPI Large 3.5 kg

– ESAPI XL 4.0 kg

– 6″ x 8″ (15 x 20 cm) 1.1 kg

– 6″ x 6″ (15 x 15 cm) 1.0 kg

Available accessories TQR 2.0 Plate Carrier
